ECO Series |
Product Overview > LED Sign Module > ECO Series |
|
|

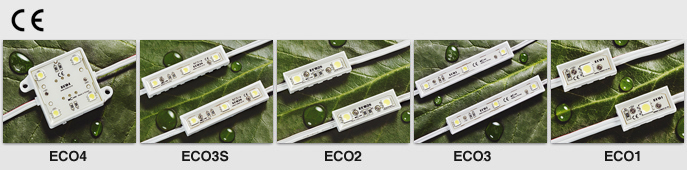

| Resistance type LED Modules for Signage |
| |
| Features |
|
|
|
 |
The best solution for the price sensitive market (CE Certified) |
|
High luminosity & Compact design |
|
3 chip SMD LED mounted (Made in Korea) |
|
Long life LEDs last for years (50,000 hours) |
|
Slight current drop through wire to wire connection (vs. Soldering) |
|
Max. 50 modules in series / Reverse current protection |
|
Durable epoxy resin fill for waterproof (IP68) rating |
|
120° viewing angle creates more uniform backlighting effects and better silhouettes |
|
Green products free from any hazardous substances |
|
Separate provision of SMPS for integrated LED solutions |
|
 |
|
|
|
 |
|
| Specification |
|
|
|
| Product No |
Color |
Dimension |
Operating Power |
Current Dissipation |
Power Dissipation |
LED Pitch |
Max. Series Connection |
| ECO4 |
W,R,G,B |
44L × 44W × 8H mm |
DC12V |
80mA |
0.96 W |
28mm |
50 modules |
| ECO3 |
W,R,G,B |
96L × 15W × 7H mm |
DC12V |
60mA |
0.72 W |
40mm |
50 modules |
| ECO3S |
W,R,G,B |
66L × 15W × 7H mm |
DC12V |
60mA |
0.72 W |
25mm |
50 modules |
| ECO2 |
W,R,G,B |
66L × 15W × 7H mm |
DC12V |
40mA |
0.48 W |
40mm |
50 modules |
| ECO2S |
W,R,G,B |
38L × 12W × 7H mm |
DC12V |
40mA |
0.48 W |
25mm |
50 modules |
| ECO1 |
W,R,G,B |
26L × 12W × 7H mm |
DC12V |
20mA |
0.24 W |
|
100 modules |
|
|
|
 |
|
 |
|
|
|
|
|
