LED Aluminum Module |
Product Overview > LED Bar-type Module > LED Aluminum Module |
|
|
| Billboards & Light box with constant current drive |
| |
| Features |
|
|
|
 |
The Best choice for Billboard and light box |
|
Available as a substitute for Fluorescent lamps put into the light box |
|
Constant current drive - “Fully warranted Stability” with high energy efficiency |
|
Strong aluminum body for optimum heat-radiation function |
|
Easy installation of one meter length product with adhesive tape |
|
15pcs of NCAL24 (1meter length) connectable in series with Constant current drive |
|
3 chip SMD LED mounted (Made in Korea) |
|
Long life LEDs last for years (50,000 hours) |
|
Efficient Heat release with double-sided PCB design |
|
Reverse current protection |
|
Durable epoxy resin fill for waterproof (IP67) rating |
|
120° viewing angle creates more uniform backlighting effects and better silhouettes |
|
Green products free from any hazardous substances |
|
Separate provision of SMPS for integrated LED solutions |
|
 |
|
|
| Specification |
|
|
|
| Product No. |
Color |
Dimension |
Operating Power |
Current Dissipation |
Power Dissipation |
Luminosity |
Max. Series Connection |
| NCAL BAR-2 |
W,R,G,B |
7.2T*15W*68L mm |
DC12V |
40mA |
0.48W |
31 lumen |
50 modules |
| NCAL BAR-3S |
W,R,G,B |
7.2T*15W*68L mm |
DC12V |
60mA |
0.72W |
47 lumen |
50 modules |
| NCAL BAR-6 |
W,R,G,B |
7.2T*15W*250L mm |
DC24V |
60mA |
1.44W |
94 lumen |
50 modules |
| NCAL BAR-12 |
W,R,G,B |
7.2T*15W*490L mm |
DC24V |
120mA |
2.88W |
187 lumen |
30 modules |
| NCAL BAR-24 |
W,R,G,B |
7.2T*15W*970L mm |
DC24V |
240mA |
5.76W |
374 lumen |
15 modules |
|
|
|

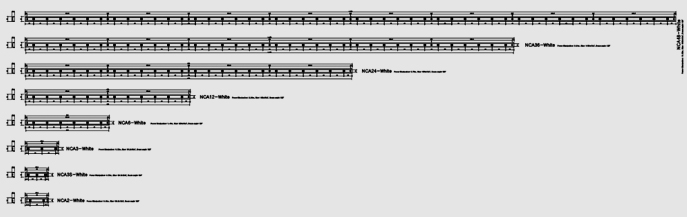

| Dimension |
|
|
|
 |
 |
|
|
|
|
|
