RGB Controller

Features
Full-color RGB dimming controller with 8 pre-programmed mode
Max. 24 channels display through the RS485 communication
Alternative for MASTER and SLAVE to control Diverse application range
Easy control of program running speed
Compact size , Easy installation
Visible program running through the LED at the top of the product
IP67 grade for protection of products from moisture and dusts
Separate provision of SMPS for integrated LED solutions
Specification
Product No. : CTM-300
Dimension : 70ø * 13mm
Operating Voltage : 12VDC
Allowded Current : 18A
Channel : 1CH
Max. Series Connection : 300modules of RGB3 / 150modules of RGB4 for each controller
24 controllers can be connected and programmed seperately for versatile expression

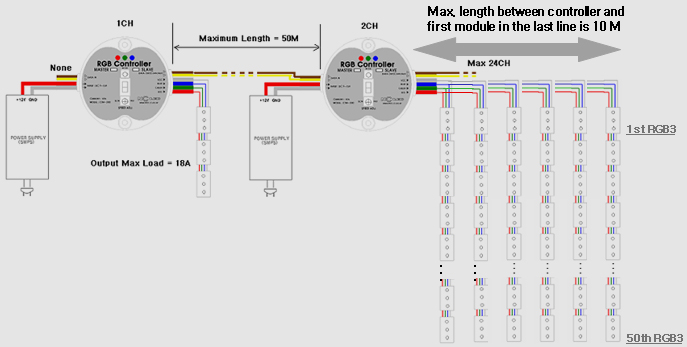

Connection Diagram for CTM-300
Max. connection number of moudles
  RGB3 : 300pcs per one CTM-300
  RGB4 : 150pcs per one CTM-300
  50pcs each in series
Connection Cable Requirement
  VCTF2.5~ 3.0 up to 300 modules
  VCTF4.5 up to 500 modules
  VCTF6.0 up to 700 modules
Max. length between controller and first module is 10 meter
